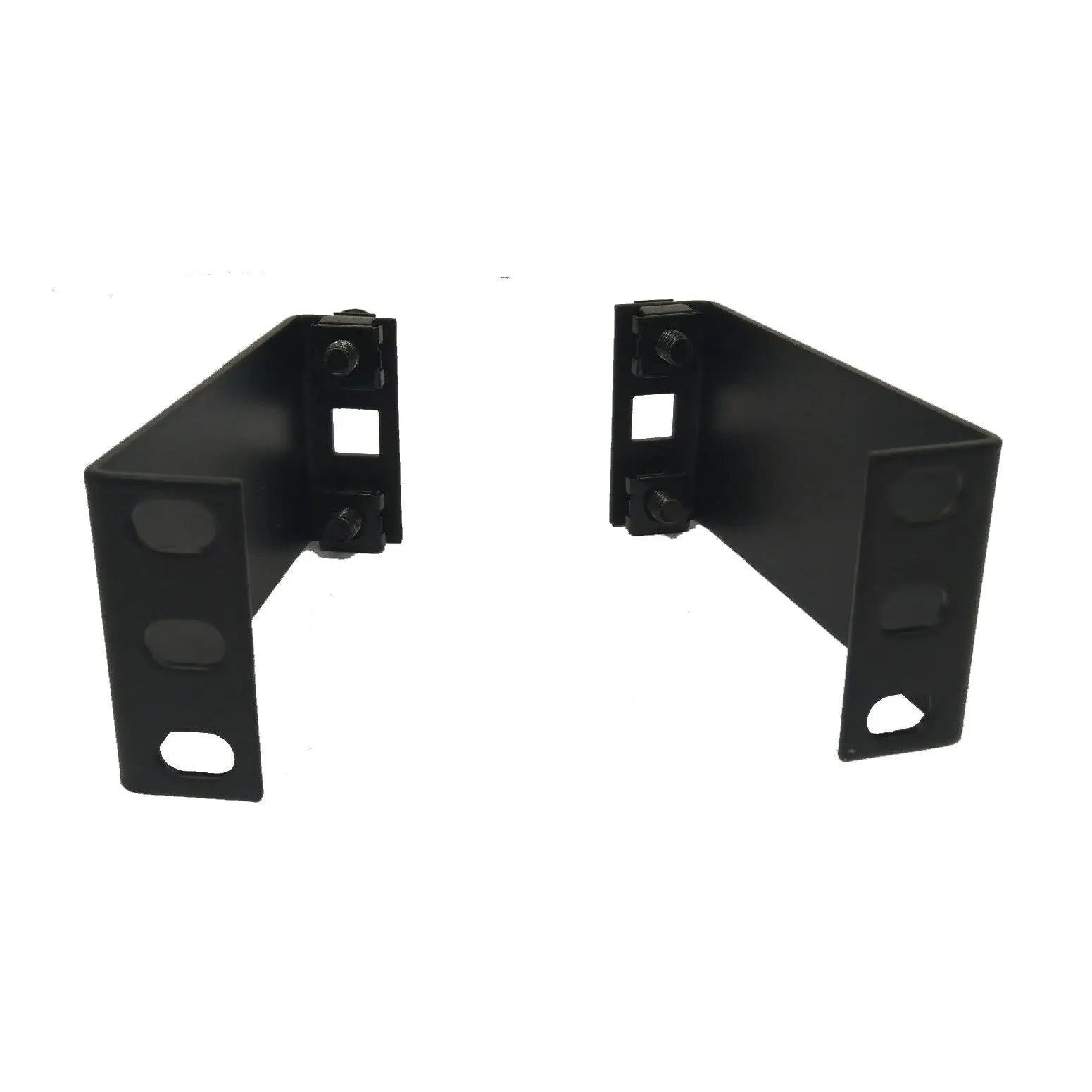

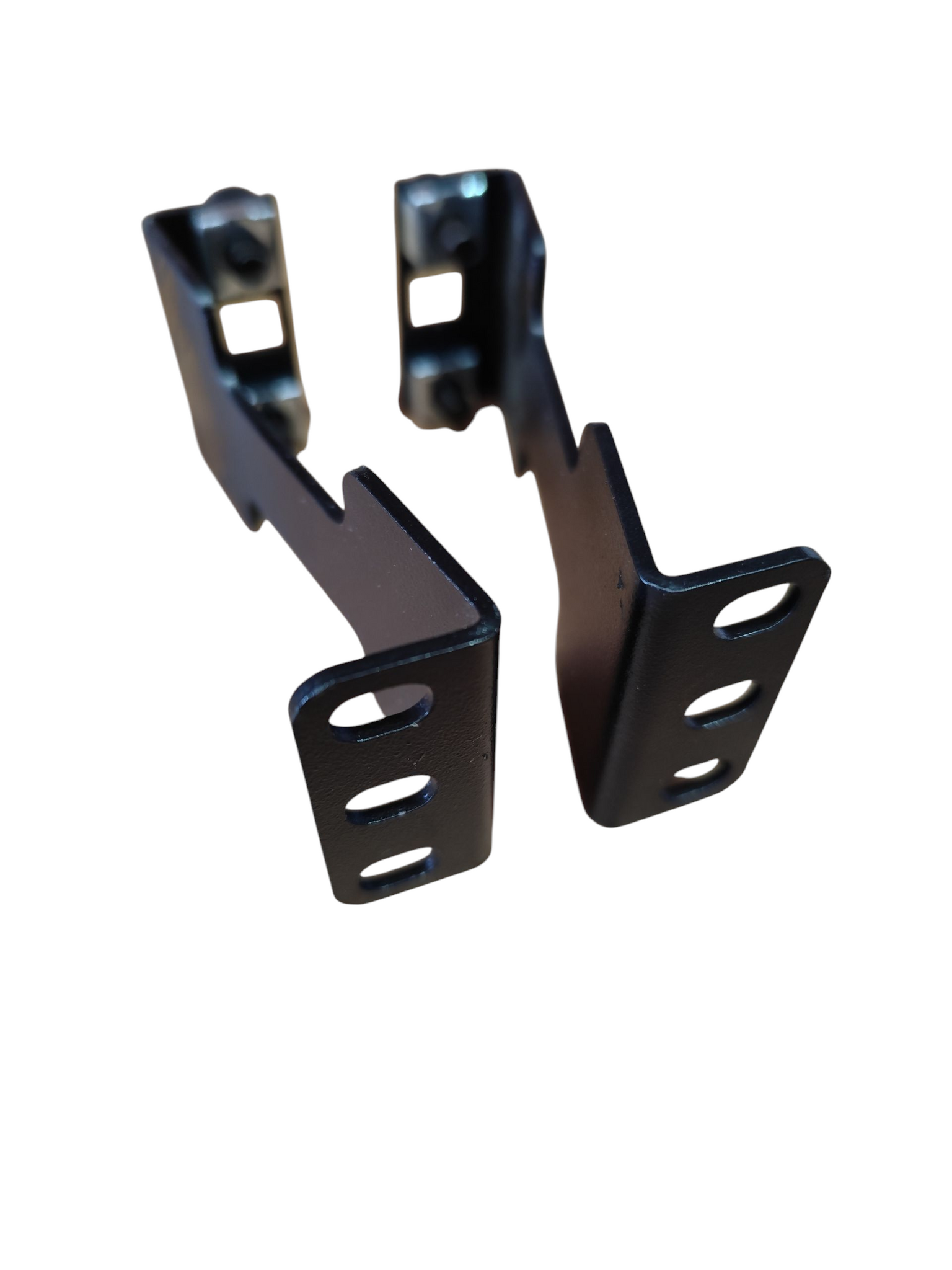

1U Recess Brkt 100mm Deep (19" Inch Rack-Mount Application)

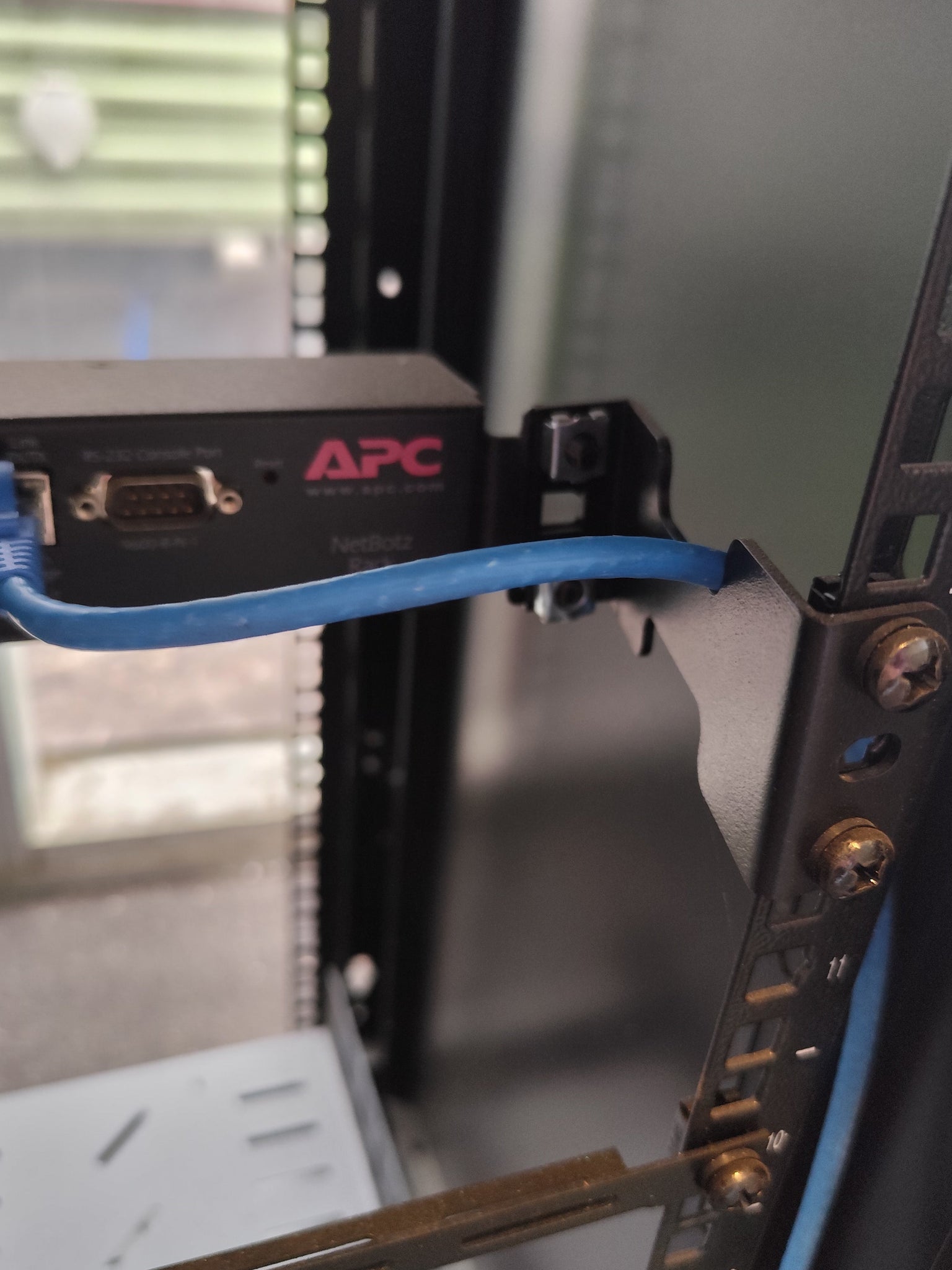

Panels and rackmounting equipment can be recessed within a rack by means of these recess mounting-brackets. They are ideal for vehicles or fixed systems where space in front of the rack is limited and in flight-case systems where a case lid is to be fitted. Manufactured from mild steel and finished in Black (ral9005) , the rear of the brackets have M6 cage nuts , allowing multiple panels or pieces of equipment to be mounted on the 2U and 3U recess brackets.

Available in 1U, 2U and 3U, with 50mm, 100mm or 150mm recess depth as standard, other heights and recess depths are available to special order but may be subject to a minimum order quantity.

It is recommended that where heavy equipment is recessed, additional support brackets are used particularly in flight-cased systems.

Manufactured by Macarac Sheetmetal

Note:

Brackets are sold in pairs.
